Approximate Bayesian inference for Structural Equation Models (SEM): The INLA approach

Psychoco 2026 @ Università di Padova

Haziq Jamil

Research Specialist
BAYESCOMP @ CEMSE-KAUST

https://haziqj.ml/psychoco26 | 📥 PDF

Håvard Rue

Professor of Statistics
BAYESCOMP @ CEMSE-KAUST

February 5, 2026

Integrated Nested Laplace Approximations

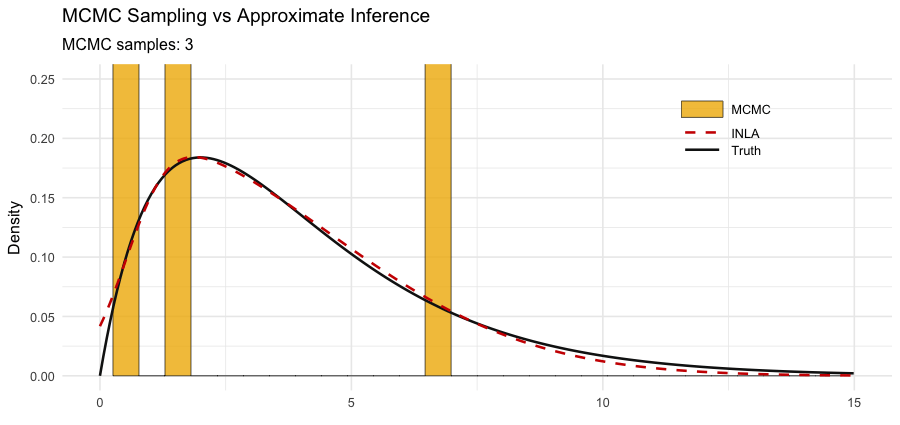

INLA provides a fast, deterministic alternative to MCMC for performing accurate Bayesian inference on a wide class of latent Gaussian models.

Rue et al. (2009)

Structural Equation Models using INLA

For \(s=1\!:\!n\), MVN-SEM equations are \[ \DeclareMathOperator*{\argmax}{argmax} \DeclareMathOperator*{\argmin}{argmin} \newcommand{\N}{\mathrm{N}} \newcommand{\SN}{\mathrm{SN}} \begin{gathered} y_s = {\nu +\,} {\Lambda} \eta_s + \epsilon_s \\ \eta_s = {\alpha +\,} { B} \eta + \zeta_s \end{gathered} \] with assumptions \(\epsilon_s \sim \N(0,\Theta)\), \(\eta_s \sim \N(0,\Psi)\), \(\operatorname{Cov}(\epsilon_s,\eta_s)=0\).
Additionally, Bayesian: \(\mathbb R^m \ni \vartheta \sim \pi(\vartheta)\).

SEM is an LGM! Can use R-INLA out of the box. However…
- INLA likes sparse precision matrices.
- Complexity increases with \(n\) and \(m\).
- Complicated R interface for SEM.
R-INLA fits in 6.3s for \(n=75\); 11.1s for \(n=750\); 125s for \(n=7500\).

INLAvaan

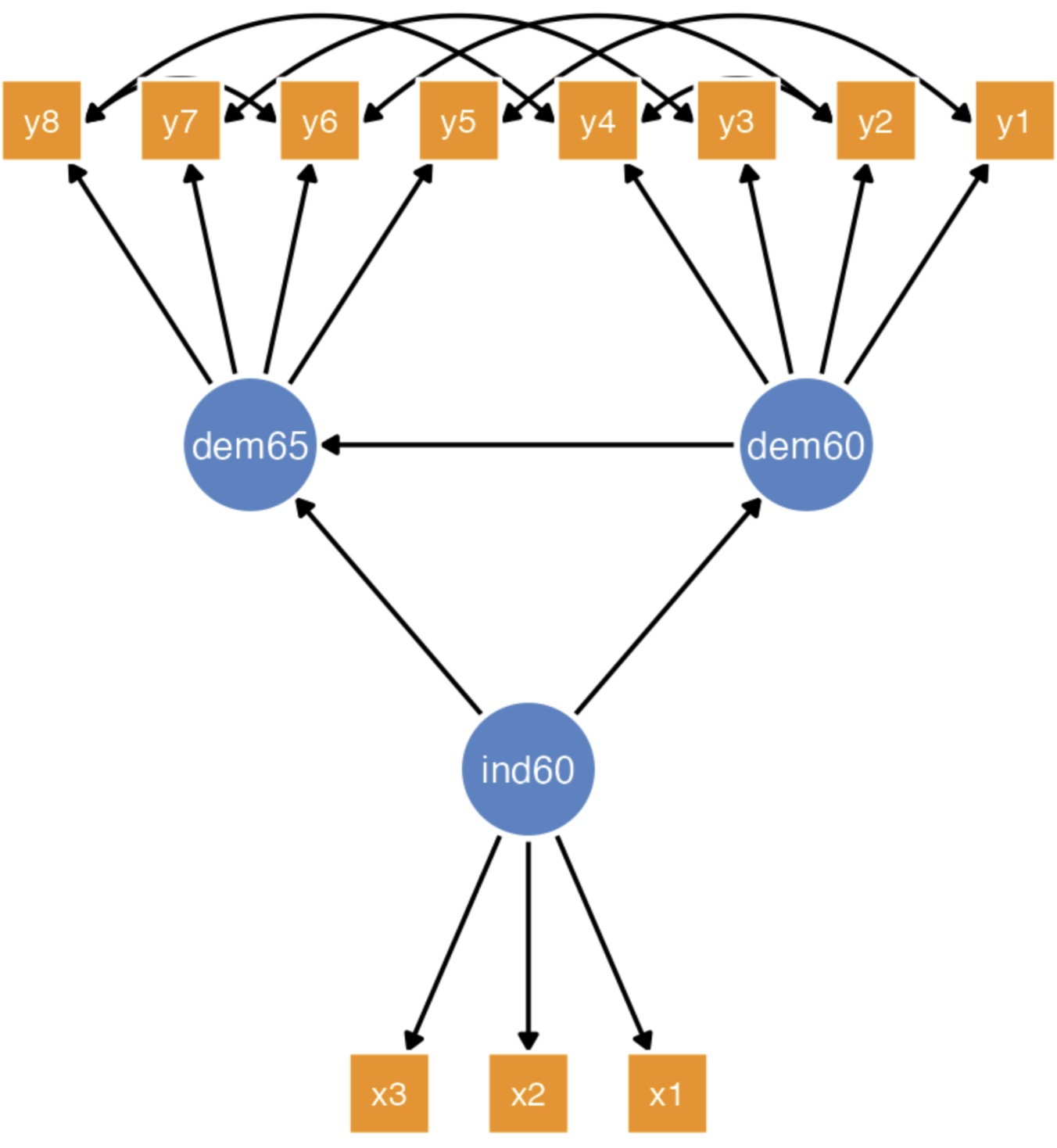

mod <- "
  ind60 =~ x1 + x2 + x3
  dem60 =~ y1 + y2 + y3
  dem65 =~ y5 + y6 + y7 + y8

  dem60 ~ ind60
  dem65 ~ ind60 + dem60

  y1 ~~ y5
  y2 ~~ y4 + y6
  y3 ~~ y7
  y4 ~~ y8
  y6 ~~ y8
"
fit <- INLAvaan::asem(
  model = mod,
  data = PoliticalDemocracy
)

ℹ Finding posterior mode.

✔ Finding posterior mode. [41ms]

ℹ Computing the Hessian.

✔ Computing the Hessian. [96ms]

ℹ Performing VB correction.

✔ VB correction; mean |δ| = 0.053σ. [101ms]

⠙ Fitting skew normal to 0/30 marginals.

✔ Fitting skew normal to 30/30 marginals. [673ms]

ℹ Sampling covariances and defined parameters.

✔ Sampling covariances and defined parameters. [56ms]

⠙ Computing ppp and DIC.

✔ Computing ppp and DIC. [172ms]

Ground up INLA implementation
- (b)lavaan syntax and methods.
- asem(), acfa(), agrowth() with dp = blavaan::dpriors() option.
- Very fast—complexity \(\uparrow\) with \(m\) only!

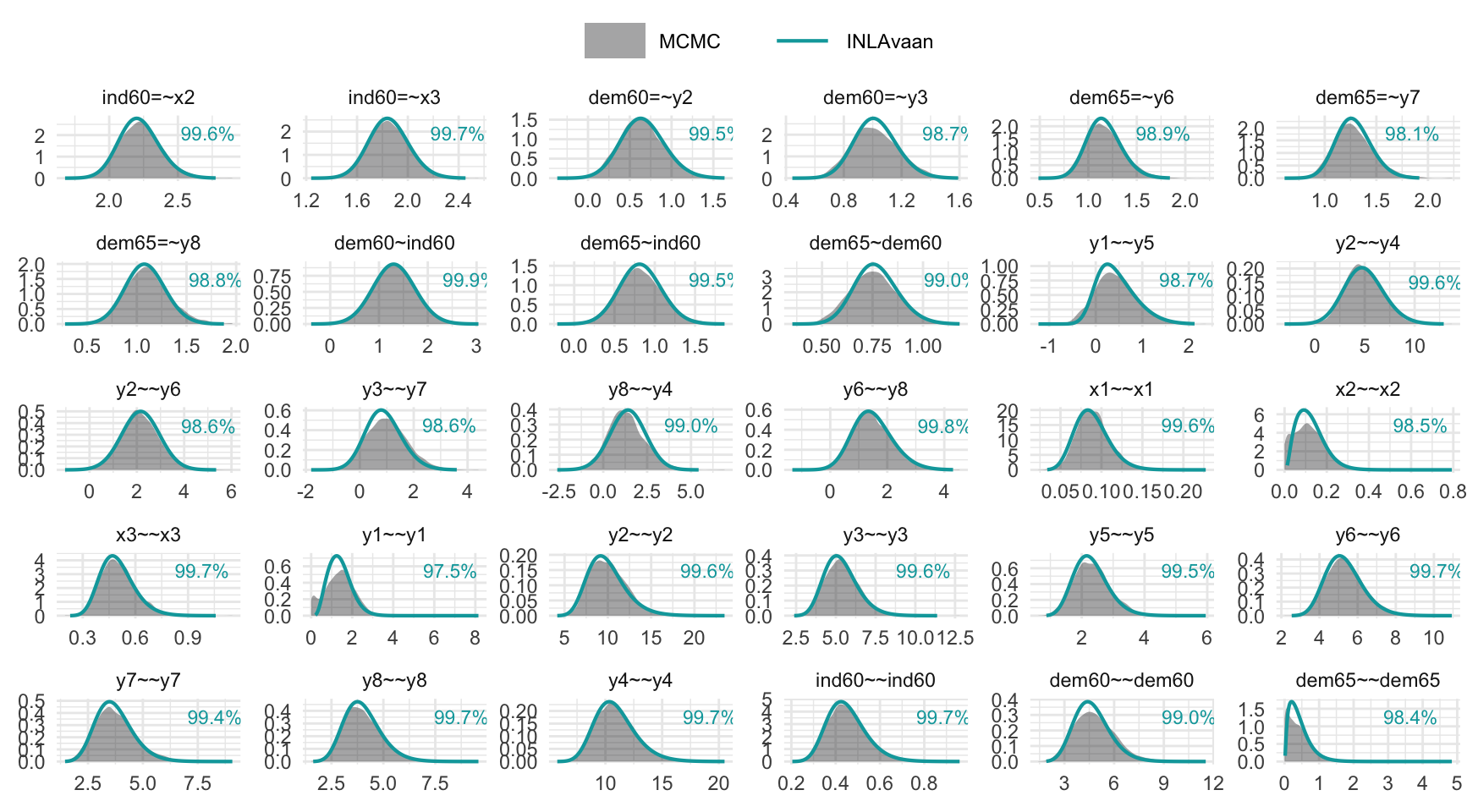

Comparison with MCMC

Global Laplace & VB correction

Consider the (unnormalised) posterior density function \(\pi(\vartheta \mid y) \propto \pi(y \mid \vartheta) \, \pi(\vartheta)\). From a 2nd order Taylor expansion about \(\vartheta^* = \argmax_\vartheta \log \pi(\vartheta \mid y)\), \[ \log \pi(\vartheta \mid y) \approx \log \pi(\vartheta^* \mid y) + \frac12 (\vartheta - \vartheta^*)^\top H (\vartheta - \vartheta^*), \] clearly able to approximate the posterior by \(\N(\vartheta^*, -H^{-1})\), where \[ H = \nabla_\vartheta^2 \log \pi(\vartheta \mid y) \big|_{\vartheta=\vartheta^*}. \]

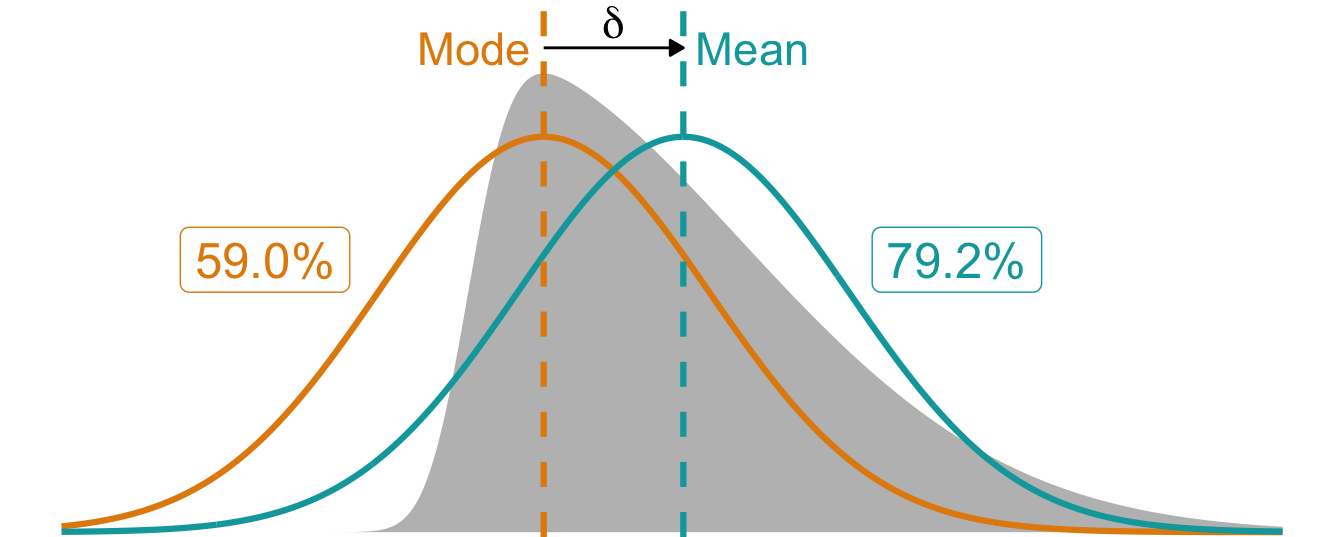

Correct the mean of the Laplace using Variational Bayes, which minimises information loss (Zellner, 1988): \[ \hat\delta = \argmin_\delta D_{\text{KL}}\big( \N(\vartheta^* + \delta, -H^{-1}) \;\Vert\; \pi(\vartheta \mid y) \big). \]

Laplace gets the shape (curvature) right, but often the location wrong. Avoid the massive cost of optimising \(\Sigma_\vartheta\) (van Niekerk & Rue, 2024).

Approximate posterior marginals

Use the Laplace approximation again, this time to approximate an integral: \[ \pi(\vartheta_j \mid y) = \int e^{\log \pi(\vartheta_j, \vartheta_{-j} \mid y)} \approx K \times \overbrace{\pi(\vartheta_j, \hat\vartheta_{-j} \mid y)}^{\text{height}} \times \overbrace{\left| H_{-j} \right|^{-1/2 }}^{\text{width}} \]
This is expensive to compute, as for every \(\vartheta_j\) evaluation, need
1. An optimisation of \(\vartheta_{-j}\) at this location; and
2. The (log) determinant of the Hessian there.

When paired evaluations \((\vartheta_{kj}, \pi_{kj})\) are obtained, perform least squares curve fitting of skew normal distributions \[\pi(\vartheta_j \mid y) \approx \SN(\hat\xi,\hat\omega,\hat\alpha).\]

Approximate posterior marginals (cont.)

Lemma 1 (Conditional Mean Path) = No need for reoptimisation

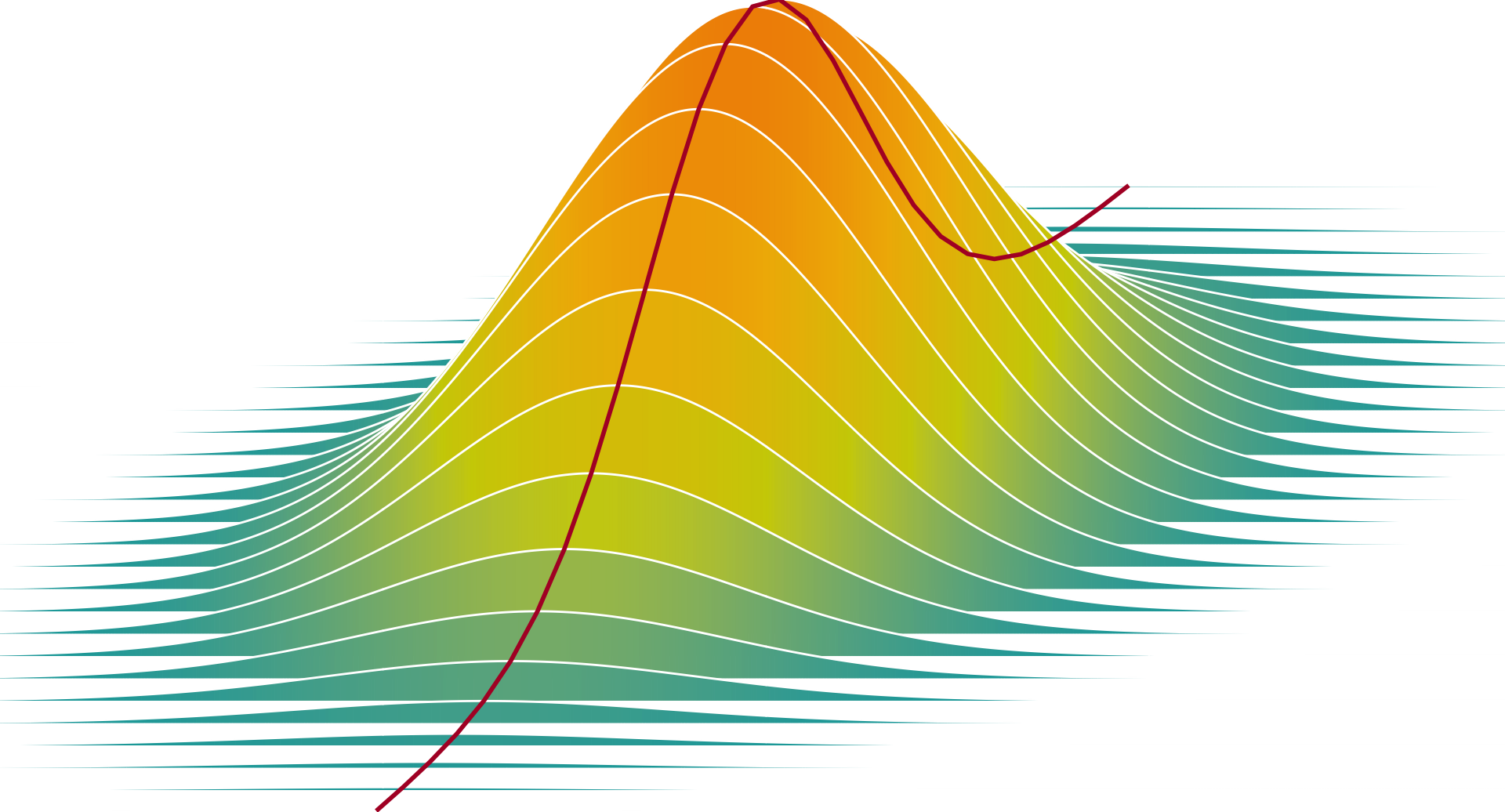

The set \(\mathcal{C}_j = \big\{ \vartheta \in \mathbb{R}^m \mid \vartheta_{-j} = \operatorname{E}_{{\pi_G}}[\vartheta_{-j} \mid \vartheta_j] \big\}\) is the sufficient integration path for the marginal, i.e. \(\pi(\vartheta_j) \propto \pi(\vartheta)\big|_{\vartheta\in\mathcal C_j}\). Under Gaussianity, the path is linear: \[\vartheta(t)=\vartheta^*+\Sigma_{\cdot j}\Sigma_{jj}^{-1}t.\]

Lemma 2 (Efficient volume correction) = No need to factor dense Hessian

Let \(L\) be a whitening matrix for \(-H\). For the \(j\)th component along the cond. mean path, \(\log |-H_{-j}(\vartheta(t))| \approx \text{const.} + \gamma_j t\), where

\[ \small \gamma_j = \sum_{k\neq j} L_{\cdot k}^\top \, \frac{d}{dt} \left( \frac{d}{dL_{\cdot k}} \Big[ \nabla_{\vartheta} \log \pi(\vartheta(t) \mid y) \Big] \right) \Bigg|_{t=0} \ . \]

Gaussian copula sampling

\[ \underbrace{z \sim N(0, R)}_{\text{Gaussian correlation}} \xrightarrow{\ \Phi(\cdot) \ } \underbrace{u}_{\ \text{Uniform} \ } \xrightarrow{ \ F_{\text{SN}}^{-1}(\cdot) \ } \underbrace{\vartheta^{(b)}}_{\text{SN Marginals}} \xrightarrow{ \ h(\cdot) \ } \text{trans. params.} \]

Reconstruct joint posterior samples \(h(\vartheta^{(b)})\) using a Copula (Nelsen, 2006):
1. Generate Latent Dependence. Draw \(z \sim N(0, R)\), where \(R\) is the correlation matrix from the inverse Hessian at the mode, \(-H^{-1}=SRS\).
2. Probability Integral Transform. Get correlated uniform variates via \(u = \Phi(z)\).
3. Inverse CDF Mapping. Apply the inverse CDF of the fitted skew normal marginals.
4. Parameter Transformation. Map to desired transformation using \(h(\cdot)\).
5. Inference. Use samples to compute estimates, credible intervals, etc.

Get estimates for covariances, derived parameters (e.g. direct/indirect effects), fit indices (PPP & DIC), factor scores, etc. using this method.

(b)lavaan S4 methods

print(fit)

INLAvaan 0.2.3.9001 ended normally after 82 iterations

  Estimator                                      BAYES
  Optimization method                           NLMINB
  Number of model parameters                        30

  Number of observations                            75

Model Test (User Model):

   Marginal log-likelihood                   -1688.569
   PPP (Chi-square)                              0.000

coef(fit)

   ind60=~x2    ind60=~x3    dem60=~y2    dem60=~y3
       2.219        1.851        0.656        1.021
   dem65=~y6    dem65=~y7    dem65=~y8  dem60~ind60
       1.163        1.281        1.086        1.310
 dem65~ind60  dem65~dem60       y1~~y5       y2~~y4
       0.823        0.768        0.224        0.444
      y2~~y6       y3~~y7       y8~~y4       y6~~y8
       0.311        0.207        0.253        0.305
      x1~~x1       x2~~x2       x3~~x3       y1~~y1
       0.088        0.123        0.498        1.395
      y2~~y2       y3~~y3       y5~~y5       y6~~y6
       9.914        5.334        2.298        5.303
      y7~~y7       y8~~y8       y4~~y4 ind60~~ind60
       3.712        4.009       10.887        0.451
dem60~~dem60 dem65~~dem65
       4.680        0.434

Also available:

summary()
fitmeasures()
predict()
standardisedsolution()
vcov()
plot()

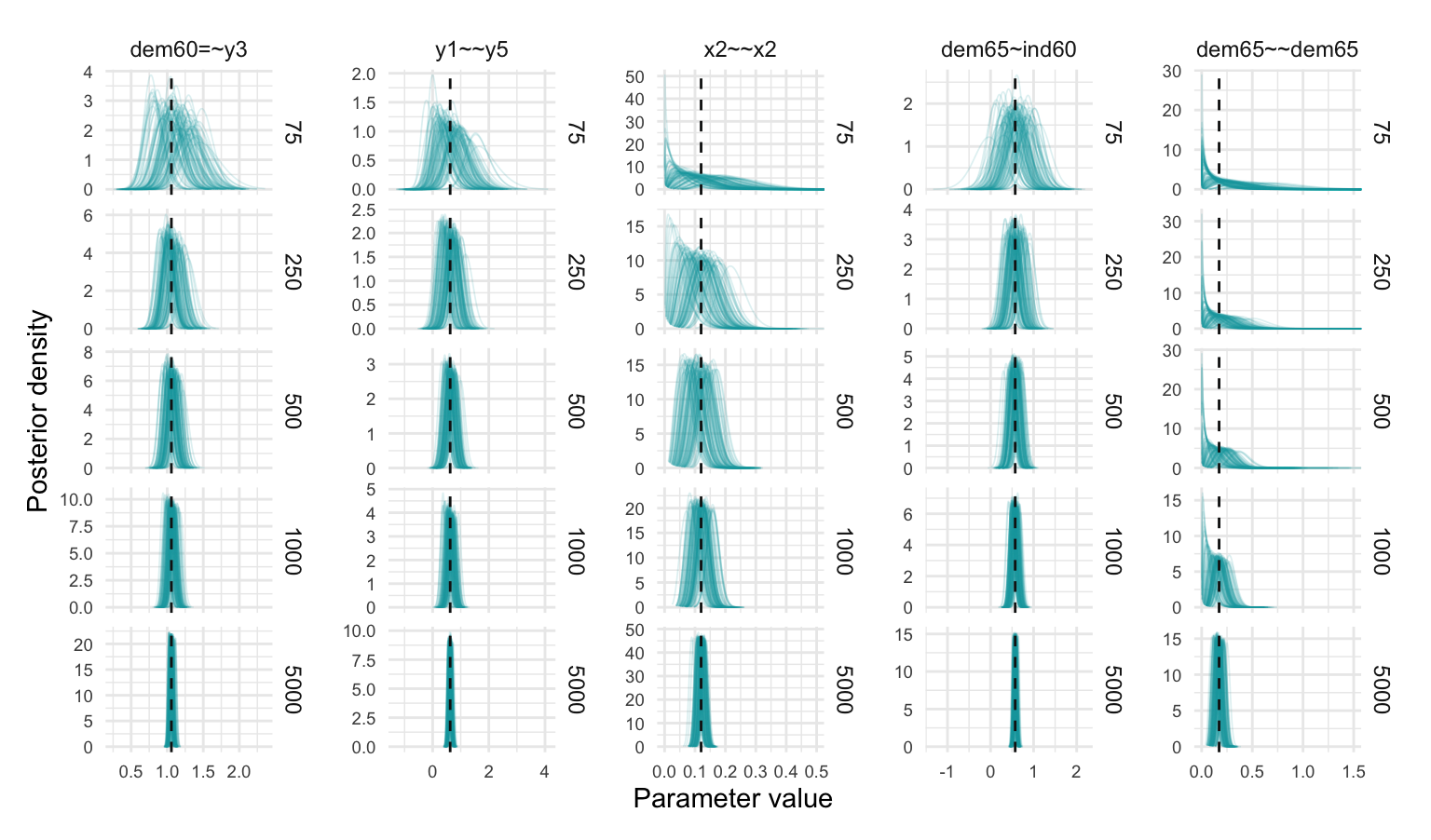

Parameter recovery from simulated data

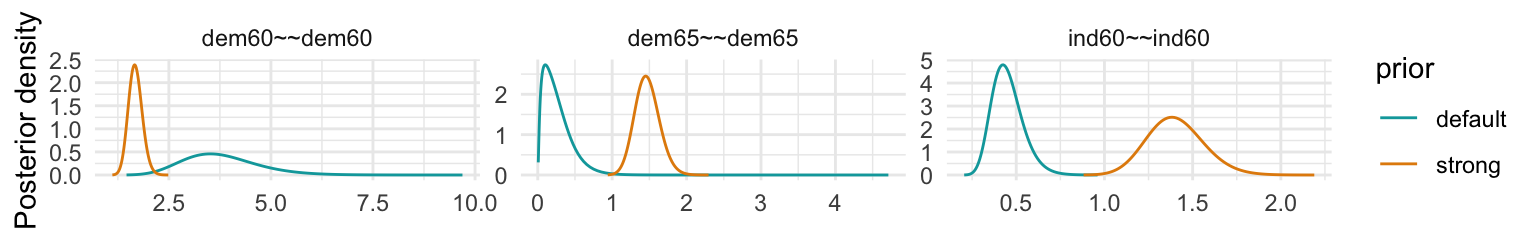

Effects of prior distributions

Loadings: \(\lambda \sim \N(0,10^2) \rightsquigarrow \lambda \sim \N(3,0.1^2)\)

Latent variances: \(\psi^{1/2} \sim \Gamma(1,0.5) \rightsquigarrow \psi \sim \Gamma(100,50)\)

Outro

🚀 INLA methodology offers a rapid alternative for SEM, delivering Bayesian results at near the speed of frequentist estimators.
- Not aiming to replace MCMC; use case is model development, testing, and exploratory analysis.

Forward looking
- Exploratory factor analysis
- Non-Gaussian outcomes (e.g. categorical, count)
- Group-/cluster-aware predictions (for LOOCV)
- Better prior support (priors for correlation matrices Freni-Sterrantino et al., 2025; penalised complexity priors Simpson et al., 2017)
- Spatiotemporal extensions (Krainski et al., 2018)

Vignettes and tutorials available on https://inlavaan.haziqj.ml/: Equality constraints, defined parameters, multigroup, multilevel, and missing data.

شكراً جزيلاً

https://haziqj.ml/psychoco26

References

Bollen, K. A. (1989). Structural equations with latent variables (pp. xiv, 514). John Wiley & Sons. https://doi.org/10.1002/9781118619179

Freni-Sterrantino, A., Rustand, D., Van Niekerk, J., Krainski, E., & Rue, H. (2025). A graphical framework for interpretable correlation matrix models for multivariate regression. Statistical Methods & Applications, 34(3), 409–447. https://doi.org/10.1007/s10260-025-00788-y

Krainski, E., Gómez-Rubio, V., Bakka, H., Lenzi, A., Castro-Camilo, D., Simpson, D., Lindgren, F., & Rue, H. (2018). Advanced spatial modeling with stochastic partial differential equations using R and INLA. Chapman and Hall/CRC.

Nelsen, R. B. (2006). An introduction to copulas (2nd ed). Springer.

Rue, H., Martino, S., & Chopin, N. (2009). Approximate Bayesian Inference for Latent Gaussian models by using Integrated Nested Laplace Approximations. Journal of the Royal Statistical Society Series B: Statistical Methodology, 71(2), 319–392. https://doi.org/10.1111/j.1467-9868.2008.00700.x

Simpson, D., Rue, H., Riebler, A., Martins, T. G., & Sørbye, S. H. (2017). Penalising Model Component Complexity: A Principled, Practical Approach to Constructing Priors. Statistical Science, 32(1), 1–28. https://doi.org/10.1214/16-STS576

van Niekerk, J., & Rue, H. (2024). Low-rank Variational Bayes correction to the Laplace method. Journal of Machine Learning Research.

Zellner, A. (1988). Optimal Information Processing and Bayes’s Theorem. The American Statistician, 42(4), 278–280. https://doi.org/10.2307/2685143
